4 channel analog/digital sensor pigtail

4 channel analog/digital sensor pigtail

$23.95
SKU: asl_m8_quad_sensor_pigtail_1m

Description

Analog / Digital sensor pigtail for Quad sensor connections, such as AnalogX or GPIOx

Used as a bare wire harness for a non plug-and-play installation of a CAN device/sensor.

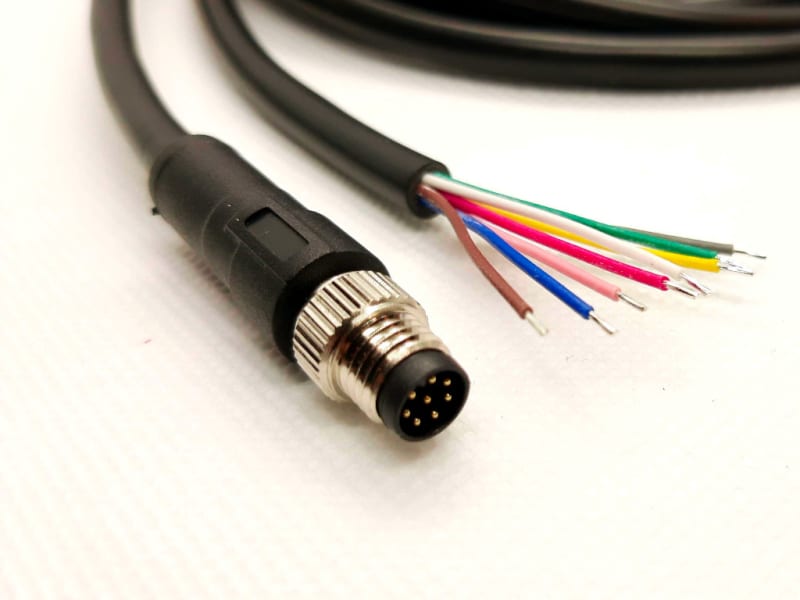

  • M8 8P male to tinned / prepared wires
  • 1 Meter length
  • Pinout:White / Pin 1 : Analog/Digital 1
    • Yellow / Pin 2 : Analog/Digital 2
    • Gray / Pin 3 : Analog/Digital 4
    • Red / Pin 4 : 5v reference
    • Brown / Pin 5 : Ground
    • Pink / Pin 6 : 5v reference
    • Blue / Pin 7 : Analog/Digital 3
    • Green / Pin 8 : Ground


Full Harness Specifications
